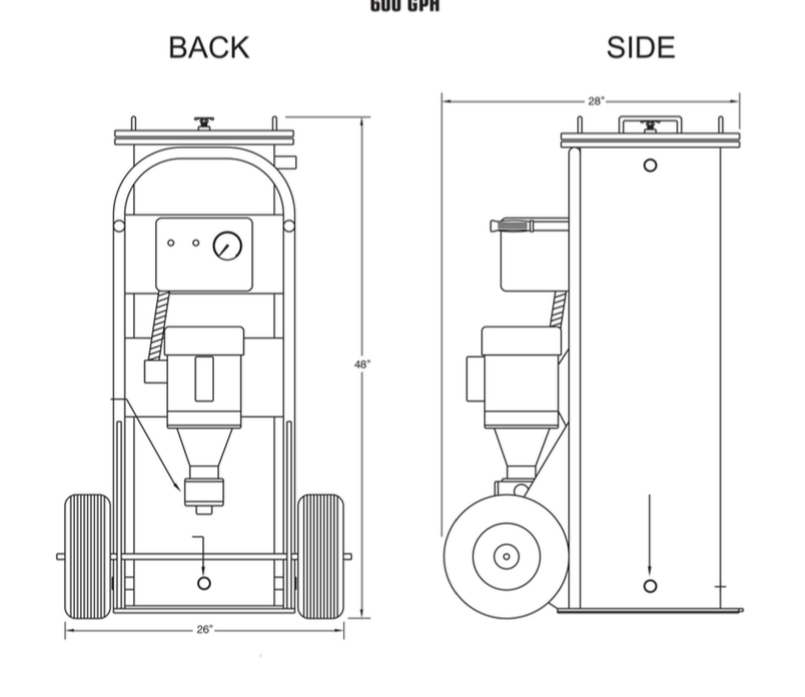

MFU-3110P Portable Filtration System
High Performance Filtration for Today's Industry
600 GPH
Specifications
- 1 HP TEFC Heavy Duty Motor with Thermal Overload Protection
- 10 GPM Mechanically sealed positive displacement gear pump with internal relief valve
- One (1) polyurethane powder baked 51-0002 element housing
- Wired 110 Volt, 1 phase with all electrical components mounted in a NEMA 4 enclosure
- Manufactured with automatic high pressure shutdown system for unattended operation
- 0-100 PSI glycerin filled gauge for monitoring system pressure
- Plumbed with 3/4" brass fittings and 2000 PSI high pressure steel braided hydraulic hose with crimped hose ends
- Two (2) 15 ft -3/4" inlet and outlet hydraulic hoses with hose ends
- Fifteen (15) feet of heavy duty 12/3 power cable
- Manufactured with 3-way ball valves for fluid fransfer system and to allow for adding makeup oil.
- Suction-Wye Strainer to protect pump from large debris
- Heavy duty 12" pneumatic tires
- Filtration Capacity of 10 GPM with Fluid Transfer Setup
Applications
Hydrolic Oil • Compressor Oil • Quench Oil • EDM Oil • Lubricating Oil • Insulating Oil • Turbine Oil • Gear Oil • Water Glycol Fluids • Water Based Coolants
