MC-319007

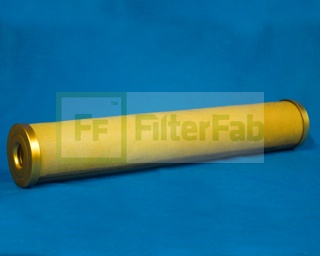

Description: COALSECER ELEMENTS

Specifications:
  • Performance Data
    Micron Rating: 10.00
    Beta Rating N/A
    Collapse Pressure Rating 75 PSID
    Maximum Temperature 225 F
    Direction of Flow
    Recommended Changeout Differential Pressure 20
  • Dimensional Data
    (A) Outer Diameter, Top 3.38 (85.85mm)
    (B) Outer Diameter, Bottom 3.38 (85.85mm)
    (C) Inner Diameter 1.19 (30.23mm)
    (D) Inner Diameter, Bottom 1.19 (30.23mm)
    (E) Length 19.68 (499.87mm)
    (F) Thread NONE
  • Physical Data
    Handle NONE
    Seal Material O'RING
    Type of Adhesive EPOXY
    Type of Endcap ALUMINUM
    Center Tube NONE
    Type of Media FIBERGLASS
    Filter Area
    Plating ANODIZED
    Outer Jacket 0
    Configuration DOUBLE OPEN END
  • Packaging Data
    Number Per Carton 6
    Carton Weight 8.00lb (3.63 kg)
