MC-515304

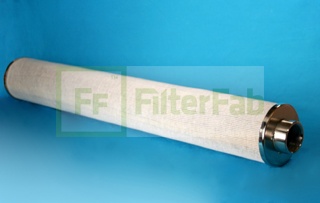

Description: COALESCER ELEMENTS

Specifications:
  • Performance Data
    Micron Rating: 5.00
    Beta Rating N/A
    Collapse Pressure Rating 60 PSID
    Maximum Temperature 200 F
    Direction of Flow
    Recommended Changeout Differential Pressure 25
  • Dimensional Data
    (A) Outer Diameter, Top 4.38 (111.25mm)
    (B) Outer Diameter, Bottom 4.38 (111.25mm)
    (C) Inner Diameter 1.50 (38.1mm)
    (D) Inner Diameter, Bottom 0.00 (0mm)
    (E) Length 31.50 (800.1mm)
    (F) Thread 1.88" FEMALE  (47.75mm)
  • Physical Data
    Handle NONE
    Seal Material BUNA-N
    Type of Adhesive EPOXY
    Type of Endcap PLATED STEEL
    Center Tube NONE
    Type of Media PAPER/GLASS
    Filter Area 3000 SQ.IN.
    Plating NICKEL
    Outer Jacket 1
    Configuration SINGLE OPEN END
  • Packaging Data
    Number Per Carton 1
    Carton Weight 5.00lb (2.27 kg)
