MC-608261

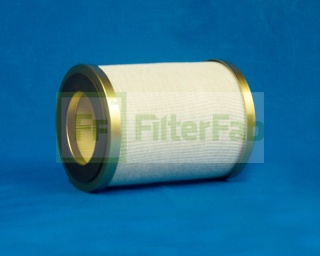

Description: COALESCER ELEMENTS

Specifications:
  • Performance Data
    Micron Rating: 1.00
    Beta Rating N/A
    Collapse Pressure Rating 40 PSID
    Maximum Temperature 250 F
    Direction of Flow
    Recommended Changeout Differential Pressure 20
  • Dimensional Data
    (A) Outer Diameter, Top 6.00 (152.4mm)
    (B) Outer Diameter, Bottom 6.00 (152.4mm)
    (C) Inner Diameter 3.50 (88.9mm)
    (D) Inner Diameter, Bottom 3.50 (88.9mm)
    (E) Length 8.00 (203.2mm)
    (F) Thread NONE
  • Physical Data
    Handle NONE
    Seal Material BUNA-N
    Type of Adhesive EPOXY
    Type of Endcap ALUMINUM
    Center Tube OPTIONAL
    Type of Media PAPER/GLASS
    Filter Area 1536 SQ.IN.
    Plating ANODIZED
    Outer Jacket 1
    Configuration DOUBLE OPEN END
  • Packaging Data
    Number Per Carton 12
    Carton Weight 23.00lb (10.43 kg)
