MC-618262-TB

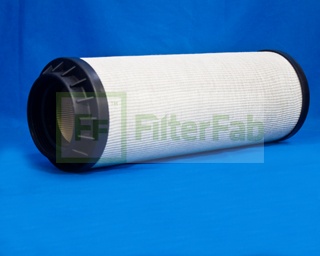

Description: COALESCER ELEMENTS

Specifications:
  • Performance Data
    Micron Rating: 2.00
    Beta Rating N/A
    Collapse Pressure Rating 75 PSID
    Maximum Temperature 250 F
    Direction of Flow
    Recommended Changeout Differential Pressure 20
  • Dimensional Data
    (A) Outer Diameter, Top 6.00 (152.4mm)
    (B) Outer Diameter, Bottom 6.00 (152.4mm)
    (C) Inner Diameter 3.25 (82.55mm)
    (D) Inner Diameter, Bottom 0.00 (0mm)
    (E) Length 19.00 (482.6mm)
    (F) Thread 3.25" FEMALE  (82.55mm)
  • Physical Data
    Handle NONE
    Seal Material BUNA-N
    Type of Adhesive EPOXY
    Type of Endcap GLASS FILLED NYLON
    Center Tube NONE
    Type of Media PAPER/GLASS
    Filter Area SQ.IN.
    Plating NONE
    Outer Jacket 1
    Configuration SINGLE OPEN END
  • Packaging Data
    Number Per Carton 6
    Carton Weight 0.00lb (0 kg)
