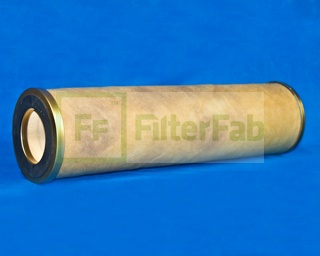

MC-622264-B

Description: COALESCER ELEMENTS

Specifications:

Performance Data

Micron Rating:	10.00
Beta Rating	N/A
Collapse Pressure Rating	75 PSID
Maximum Temperature	250 F
Direction of Flow
Recommended Changeout Differential Pressure	25

Dimensional Data

(A) Outer Diameter, Top	6.00 (152.4mm)
(B) Outer Diameter, Bottom	6.00 (152.4mm)
(C) Inner Diameter	3.50 (88.9mm)
(D) Inner Diameter, Bottom	0.50 (12.7mm)
(E) Length	22.12 (561.85mm)
(F) Thread	NONE

Physical Data

Handle	NONE
Seal Material	BUNA-N
Type of Adhesive	EPOXY 35G/54G *
Type of Endcap	ALUMINUM
Center Tube	NONE
Type of Media	PAPER/GLASS
Filter Area	4272 SQ.IN.
Plating	ANODIZED
Outer Jacket	0
Configuration	SINGLE OPEN END/BH

Packaging Data
