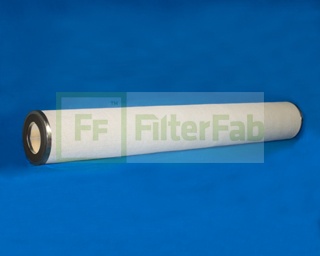

MC-644264

Description: COALESCER ELEMENTS

Specifications:
  • Performance Data
    Micron Rating: 10.00
    Beta Rating N/A
    Collapse Pressure Rating 75 PSID
    Maximum Temperature 275 F
    Direction of Flow
    Recommended Changeout Differential Pressure 25
  • Dimensional Data
    (A) Outer Diameter, Top 6.00 (152.4mm)
    (B) Outer Diameter, Bottom 6.00 (152.4mm)
    (C) Inner Diameter 3.50 (88.9mm)
    (D) Inner Diameter, Bottom 3.50 (88.9mm)
    (E) Length 43.88 (1114.55mm)
    (F) Thread NONE
  • Physical Data
    Handle NONE
    Seal Material BUNA-N
    Type of Adhesive EPOXY 64 G*
    Type of Endcap ALUMINUM
    Center Tube OPTIONAL
    Type of Media PAPER/GLASS
    Filter Area 7591 SQ. IN.
    Plating ANODIZED
    Outer Jacket 1
    Configuration DOUBLE OPEN END
  • Packaging Data
    Number Per Carton 4
    Carton Weight 42.00lb (19.05 kg)
