MC-K2100

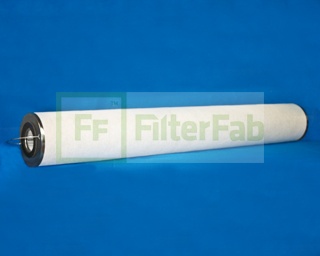

Description: TURBINE OIL ELEMENT COALESCER

Specifications:
  • Performance Data
    Micron Rating: 2.00
    Beta Rating N/A
    Collapse Pressure Rating 75 PSID
    Maximum Temperature 225 F
    Direction of Flow
    Recommended Changeout Differential Pressure 20
  • Dimensional Data
    (A) Outer Diameter, Top 6.00 (152.4mm)
    (B) Outer Diameter, Bottom 6.00 (152.4mm)
    (C) Inner Diameter 3.50 (88.9mm)
    (D) Inner Diameter, Bottom 2.63 (66.8mm)
    (E) Length 44.25 (1123.95mm)
    (F) Thread NONE
  • Physical Data
    Handle 1
    Seal Material BUNA-N
    Type of Adhesive EPOXY
    Type of Endcap PLATED STEEL
    Center Tube PLATED STEEL
    Type of Media F-GLASS/MICRO
    Filter Area 6004 SQ.IN.
    Plating ELECTROTIN PLATED
    Outer Jacket 1
    Configuration DOUBLE OPEN END
  • Packaging Data
    Number Per Carton 4
    Carton Weight 51.00lb (23.13 kg)
