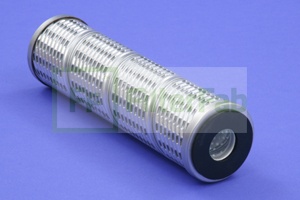

ME-310205

Description: FULLERS EARTH ELEMENTS

Specifications:

Performance Data

Micron Rating:	5.00
Beta Rating	N/A
Collapse Pressure Rating	100 PSID
Maximum Temperature	225 F
Direction of Flow
Recommended Changeout Differential Pressure	20

Dimensional Data

(A) Outer Diameter, Top	2.63 (66.8mm)
(B) Outer Diameter, Bottom	2.63 (66.8mm)
(C) Inner Diameter	1.06 (26.92mm)
(D) Inner Diameter, Bottom	1.06 (26.92mm)
(E) Length	9.75 (247.65mm)
(F) Thread	NONE

Physical Data

Handle	NONE
Seal Material	BUNA-N
Type of Adhesive	EPOXY
Type of Endcap	PLATED STEEL
Center Tube	PLATED STEEL
Type of Media	FULLERS EARTH
Filter Area
Plating	ELECTROTIN PLATED
Outer Jacket	1
Configuration	DOUBLE OPEN END

Packaging Data

$ 0.00
