MP-310205

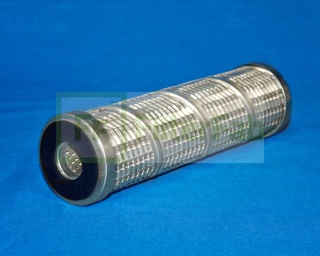

Description: PLEATED PAPER ELEMENTS

Specifications:
  • Performance Data
    Micron Rating: 5.00
    Beta Rating 75
    Collapse Pressure Rating 100 PSID
    Maximum Temperature 225 F
    Direction of Flow
    Recommended Changeout Differential Pressure 25
  • Dimensional Data
    (A) Outer Diameter, Top 2.63 (66.8mm)
    (B) Outer Diameter, Bottom 2.63 (66.8mm)
    (C) Inner Diameter 1.06 (26.92mm)
    (D) Inner Diameter, Bottom 1.06 (26.92mm)
    (E) Length 9.75 (247.65mm)
    (F) Thread NONE
  • Physical Data
    Handle NONE
    Seal Material BUNA-N
    Type of Adhesive EPOXY
    Type of Endcap PLATED STEEL
    Center Tube PLATED STEEL
    Type of Media PAPER
    Filter Area 5 SQ.FT.
    Plating ELECTROTIN PLATED
    Outer Jacket 1
    Configuration DOUBLE OPEN END
  • Packaging Data
    Number Per Carton 12
    Carton Weight 12.00lb (5.44 kg)
