MP-614205-NJ-FM

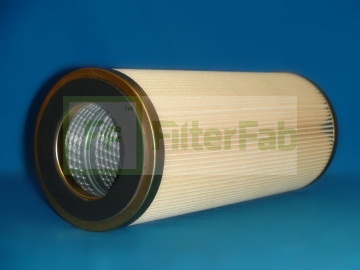

Description: PLEATED PAPER ELEMENTS

Specifications:
  • Performance Data
    Micron Rating: 5.00
    Beta Rating N/A
    Collapse Pressure Rating 100 PSID
    Maximum Temperature 225 F
    Direction of Flow
    Recommended Changeout Differential Pressure 25
  • Dimensional Data
    (A) Outer Diameter, Top 6.00 (152.4mm)
    (B) Outer Diameter, Bottom 6.00 (152.4mm)
    (C) Inner Diameter 3.50 (88.9mm)
    (D) Inner Diameter, Bottom 3.50 (88.9mm)
    (E) Length 14.50 (368.3mm)
    (F) Thread NONE
  • Physical Data
    Handle NONE
    Seal Material VITON
    Type of Adhesive EPOXY
    Type of Endcap ALUMINUM
    Center Tube PLATED GALV
    Type of Media PAPER
    Filter Area 3556 SQ.IN.
    Plating ANODIZED
    Outer Jacket 0
    Configuration DOUBLE OPEN END
  • Packaging Data
    Number Per Carton 6
    Carton Weight 16.00lb (7.26 kg)
