MPG-618206-EP-V

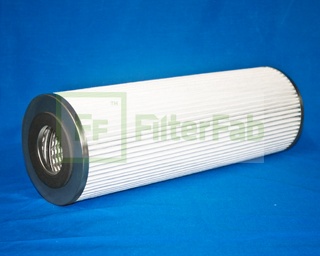

Description: PLEATED MICROGLASS ELEMENTS

Specifications:
  • Performance Data
    Micron Rating: 6.00
    Beta Rating B6 = 200
    Collapse Pressure Rating 100 PSID
    Maximum Temperature 400 F
    Direction of Flow
    Recommended Changeout Differential Pressure 50
  • Dimensional Data
    (A) Outer Diameter, Top 6.00 (152.4mm)
    (B) Outer Diameter, Bottom 6.00 (152.4mm)
    (C) Inner Diameter 2.63 (66.8mm)
    (D) Inner Diameter, Bottom 2.63 (66.8mm)
    (E) Length 18.00 (457.2mm)
    (F) Thread NONE
  • Physical Data
    Handle 1
    Seal Material VITON
    Type of Adhesive EPOXY
    Type of Endcap PLATED STEEL
    Center Tube PLATED STEEL
    Type of Media MICROGLASS
    Filter Area 17.14 SQ.FT.
    Plating ELECTROTIN PLATED
    Outer Jacket 0
    Configuration DOUBLE OPEN END
  • Packaging Data
    Number Per Carton 1
    Carton Weight 15.00lb (6.8 kg)
