MR-13P00

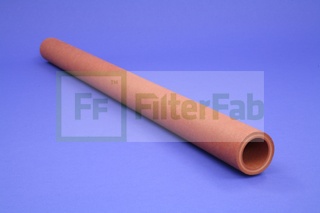

Description: ROLLED PAPER ELEMENTS

Specifications:
  • Performance Data
    Micron Rating: 25.00
    Beta Rating N/A
    Collapse Pressure Rating 75 PSID
    Maximum Temperature 250 F
    Direction of Flow
    Recommended Changeout Differential Pressure 25
  • Dimensional Data
    (A) Outer Diameter, Top 2.50 (63.5mm)
    (B) Outer Diameter, Bottom 2.50 (63.5mm)
    (C) Inner Diameter 1.75 (44.45mm)
    (D) Inner Diameter, Bottom 1.75 (44.45mm)
    (E) Length 35.50 (901.7mm)
    (F) Thread NONE
  • Physical Data
    Handle NONE
    Seal Material NONE
    Type of Adhesive NONE
    Type of Endcap NONE
    Center Tube NONE
    Type of Media PAPER
    Filter Area 278 SQ.IN.
    Plating NONE
    Outer Jacket 0
    Configuration DOUBLE OPEN END
  • Packaging Data
    Number Per Carton 25
    Carton Weight 16.00lb (7.26 kg)
