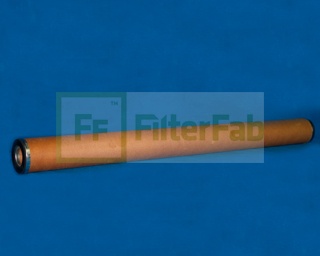

MR-25L60

Description: ROLLED PAPER ELEMENTS

Specifications:
  • Performance Data
    Micron Rating: 3.00
    Beta Rating N/A
    Collapse Pressure Rating 75 PSID
    Maximum Temperature 300 F
    Direction of Flow
    Recommended Changeout Differential Pressure 25
  • Dimensional Data
    (A) Outer Diameter, Top 3.00 (76.2mm)
    (B) Outer Diameter, Bottom 3.00 (76.2mm)
    (C) Inner Diameter 1.70 (43.18mm)
    (D) Inner Diameter, Bottom 1.70 (43.18mm)
    (E) Length 35.50 (901.7mm)
    (F) Thread NONE
  • Physical Data
    Handle NONE
    Seal Material BUNA-N
    Type of Adhesive EPOXY
    Type of Endcap PLATED STEEL
    Center Tube NONE
    Type of Media PAPER
    Filter Area 200 SQ.IN.
    Plating ELECTROTIN PLATED
    Outer Jacket 0
    Configuration DOUBLE OPEN END
  • Packaging Data
    Number Per Carton 6
    Carton Weight 16.00lb (7.26 kg)
