MS-611P62

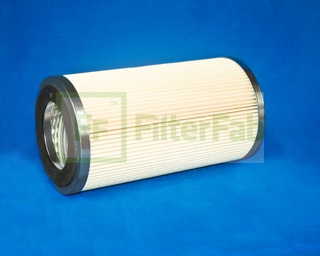

Description: SEPARATOR ELEMENTS PLEATED PAPER

Specifications:
  • Performance Data
    Micron Rating: 5.00
    Beta Rating N/A
    Collapse Pressure Rating 75 PSID
    Maximum Temperature 225 F
    Direction of Flow
    Recommended Changeout Differential Pressure 25
  • Dimensional Data
    (A) Outer Diameter, Top 6.00 (152.4mm)
    (B) Outer Diameter, Bottom 6.00 (152.4mm)
    (C) Inner Diameter 3.50 (88.9mm)
    (D) Inner Diameter, Bottom 3.50 (88.9mm)
    (E) Length 11.25 (285.75mm)
    (F) Thread NONE
  • Physical Data
    Handle NONE
    Seal Material BUNA-N
    Type of Adhesive EPOXY 65G*
    Type of Endcap PLATED STEEL
    Center Tube PLATED STEEL
    Type of Media PAPER
    Filter Area SQ.IN.
    Plating ELECTROTIN PLATED
    Outer Jacket 0
    Configuration DOUBLE OPEN END
  • Packaging Data
    Number Per Carton 6
    Carton Weight 15.00lb (6.8 kg)
