MS-624S62-SOE

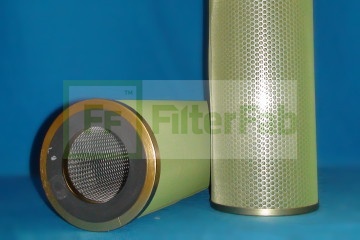

Description: SEPARATOR ELEMENTS TEFLON COATED

Specifications:

Performance Data

Micron Rating:	150.00
Beta Rating	N/A
Collapse Pressure Rating	75 PSID
Maximum Temperature	225 F
Direction of Flow
Recommended Changeout Differential Pressure	25

Dimensional Data

(A) Outer Diameter, Top	6.00 (152.4mm)
(B) Outer Diameter, Bottom	6.00 (152.4mm)
(C) Inner Diameter	3.50 (88.9mm)
(D) Inner Diameter, Bottom	0.56 (14.22mm)
(E) Length	24.00 (609.6mm)
(F) Thread	NONE

Physical Data

Handle	NONE
Seal Material	BUNA-N
Type of Adhesive	EPOXY
Type of Endcap	ALUMINUM
Center Tube	ALUMINUM
Type of Media	304 SS/TEFLON
Filter Area	SQ.IN.
Plating	ANODIZED
Outer Jacket	0
Configuration	SINGLE OPEN END/BH

Packaging Data
