MSC-424S62

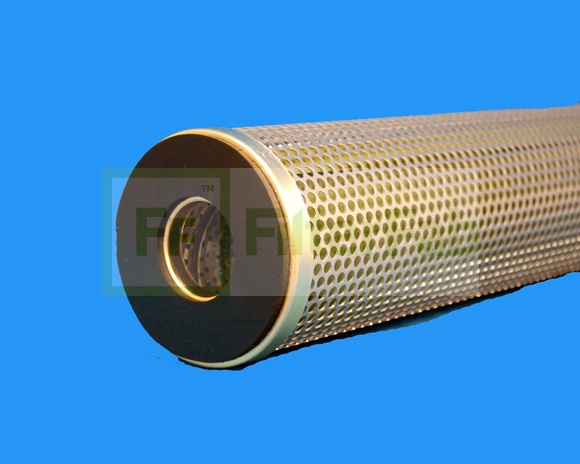

Description: CANISTER SEPARATOR ELEMENTS

Specifications:

Performance Data

Micron Rating:	150.00
Beta Rating	N/A
Collapse Pressure Rating	75 PSID
Maximum Temperature	225 F
Direction of Flow
Recommended Changeout Differential Pressure	20

Dimensional Data

(A) Outer Diameter, Top	4.50 (114.3mm)
(B) Outer Diameter, Bottom	4.50 (114.3mm)
(C) Inner Diameter	3.50 (88.9mm)
(D) Inner Diameter, Bottom	0.50 (12.7mm)
(E) Length	24.13 (612.9mm)
(F) Thread	NONE

Physical Data

Handle	NONE
Seal Material	GASKET
Type of Adhesive	EPOXY
Type of Endcap	ALUMINUM
Center Tube	ALUMINUM
Type of Media	304 SS/TEFLON
Filter Area
Plating	ANODIZED
Outer Jacket	0
Configuration	SINGLE OPEN END

Packaging Data

$ 0.00
