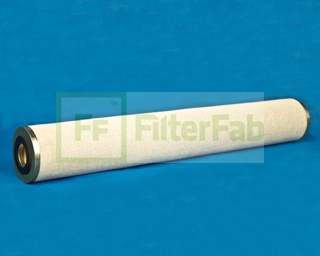

MSC-RPS2-30

Description: COALASER ELEMENTS

Specifications:
  • Performance Data
    Micron Rating: 30.00
    Beta Rating N/A
    Collapse Pressure Rating 75 PSID
    Maximum Temperature 250 F
    Direction of Flow
    Recommended Changeout Differential Pressure 25
  • Dimensional Data
    (A) Outer Diameter, Top 4.25 (107.95mm)
    (B) Outer Diameter, Bottom 0.00 (0mm)
    (C) Inner Diameter 1.75 (44.45mm)
    (D) Inner Diameter, Bottom 0.00 (0mm)
    (E) Length 29.58 (751.33mm)
    (F) Thread NONE
  • Physical Data
    Handle NONE
    Seal Material BUNA-N
    Type of Adhesive EPOXY
    Type of Endcap PLATED STEEL
    Center Tube
    Type of Media GLASS/PAPER
    Filter Area
    Plating ELECTROTIN PLATED
    Outer Jacket 1
    Configuration DOUBLE OPEN ENDS
  • Packaging Data
    Number Per Carton 5
    Carton Weight 25.00lb (11.34 kg)

$  0.00
