MWPS-1107

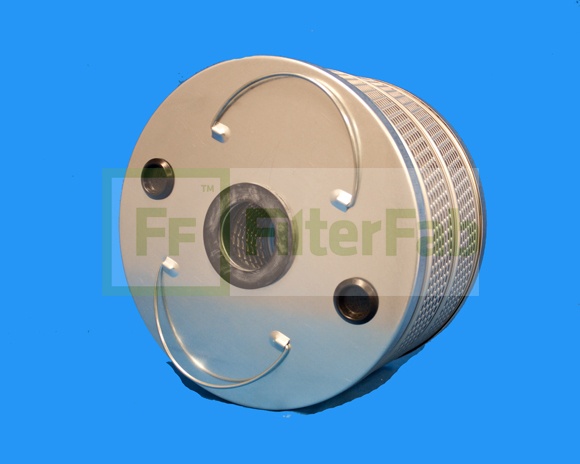

Description: DUAL MEDIA WATER ABSORBTION ELEMENTS

Specifications:
  • Performance Data
    Micron Rating: 0.50
    Beta Rating N/A
    Collapse Pressure Rating 75 PSID
    Maximum Temperature 225 F
    Direction of Flow
    Recommended Changeout Differential Pressure 25
  • Dimensional Data
    (A) Outer Diameter, Top 11.00 (279.4mm)
    (B) Outer Diameter, Bottom 11.00 (279.4mm)
    (C) Inner Diameter 2.13 (54.1mm)
    (D) Inner Diameter, Bottom 2.12 (53.85mm)
    (E) Length 7.25 (184.15mm)
    (F) Thread NONE
  • Physical Data
    Handle 1
    Seal Material BUNA-N
    Type of Adhesive EPOXY
    Type of Endcap PLATED STEEL
    Center Tube PLATED STEEL
    Type of Media MULTI MEDIA
    Filter Area
    Plating ELECTRO GALVANIZED
    Outer Jacket 1
    Configuration DOUBLE OPEN END
  • Packaging Data
    Number Per Carton 1
    Carton Weight 18.00lb (8.16 kg)
